Solstice™ Essen :: Mocom HD/3D Projection Screen 2016-10-17T06:27:19+00:00

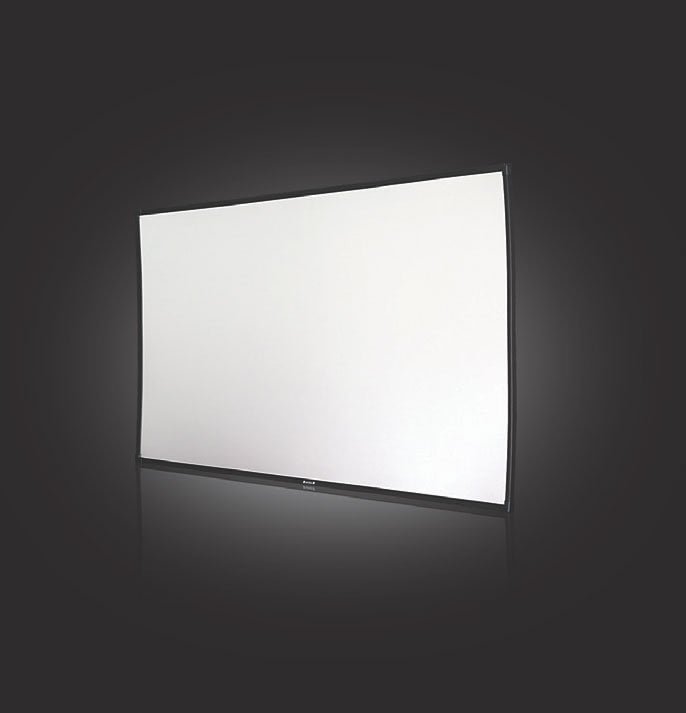

Mocom HD/3D Projector Screen

Solstice™ Essen

[divider]

    • 2D /HD,  Passive/Active 3D  Ready projection screen

    • The best ambient light rejection screen !

    • Solstice™ cost-effective version :  82″ one size
Solstice™ series projection screens from Mocomtech are ultra-high Gain optical SD/HD/3D screens designed to perform well under any lighting conditions, including bright ambient lights. Innovative materials and manufacturing processes used for the Solstice projection screen deliver 18 times more brightness as compared to a standard matte white projection screen. The specially designed, precise, lens-like curvature helps eliminate hot spots, displaying only the light from the projector while diffusing ambient light.
It comes with rigid frame, one size 82″, 16:9 Aspect ratio.
To ensure the highest quality, all screens are custom made by our highly skilled craftsmen.
[clear]
[clear]
  • Award-winning projection technology (CES Innovation)
  • Patent in USA, UK, S.Korea, Japan, China, India, and other countries
solstice essen hd/ 3d projection screen
  • Ultra High Gain Front Projection Screen
  • Concave shape
  • HD/UHD Resolution
  • Excellent color rendition
  • Rich gradation
  • High Uniformity with no hot spotting
  • Superior off-axis light rejection properties: magnifies projector’s light and rejects ambient light
  • Fast response time
  • Micro-fine diffusion lines along the scanning axis and micron sized AL particles
  • Reflective.  Very high polarization (for passive 3D)
  • Outstanding 3D imaging and image depth



[clear]

Resource

[accordion]
[accordion_toggle title=”Specification”]

Model : S3D-82
  • Front projection screen (rigid)
  • Concave shape
  • Gain : 18
  • Surface : Aluminum/nano-level diffusion lines of less than 10micron, aluminum particles of 5 micron and silicon-coated surface
  • Brightness Uniformity : Over 80% without hot spots
  • 82″  one size
  • Aspect Ratio : 16:9
  • Frame : Black silicon plastic (EPDM) – (Thickness : 45mm)
  • Excellent for any application

[/accordion_toggle]
[accordion_toggle title=”Dimension”]

Dimensions (cm)
S3D-82-IntlS3D-82-acessories-intl

Dimensions (inches)

S3D-82-USAS3D-82-acessories-USA
[/accordion_toggle]
[accordion_toggle title=”Photos”]
[nggallery id=11]
[/accordion_toggle]

[accordion_toggle title=”Download”]

projection screenSolstice Specification (cm) / (Inches)
projection screenSolstice Brochure (6p)
projection screenMocom Concave projection Screen (Solstice™) Installation Guide

[/accordion_toggle]

[accordion_toggle title=”FAQ”]

[toggle_content title=”Q : What are the primary applications for these screens?”]
A : Mocom’s front-projection screens are outstanding for public facilities, corporate training, gaming, and houses of worship, and in-home theaters. A major application in development is dynamically-controlled advertising in public spaces.
[/toggle_content]

[toggle_content title=”Q : What are the Mocom concaved screens made of?”]
A : Mocom concave screens are made from multiple lay ers of aluminum film, pressed using precision-ground lens molds against a fiberglass backing material to provide contour stability and strength. Larger screens (150″ and larger) employ a steel frame for rigidity and mounting, while smaller models use an attached fiberglass back bracket for mounting.
[/toggle_content]

[toggle_content title=”Q : What are the key differences between Mocom’s front-projection screens and conventional front-projection screens?”]
A :Mocom’s front-projection screens outperform conventional front-projection screens in every performance category. They provide higher gain, higher resolution, better contrast ratio, and better color accuracy than traditional screens. They also offer outstanding off-axis light rejection to allow them to be used in brightly lit spaces without the need for a projector  shroud or similar device. Another benefit of the perfect lens shape is that images at the center of the screen reflect back to the viewing audience as if they were coming from the screen itself.

Traditional paper and glass-bead screens are more suitable than Mocom screens only when the screens need to be rolled up (Mocom 18-23 gain front-projection screens are solid lenses, so they cannot be rolled up..)

The performance benefits of Mocom screens will  enable customers to place Mocom’s 18/23-gain screens into situations that previously would have required either rear-projection or video (e.g.. plasma) displays.  Mocom screens far outperform rear-projection or plasma displays. In addition, they require far lower maintenance costs.[/toggle_content]

[toggle_content title=”Q : How do you clean a Mocom screen?”]

A : Mocom concave front projection screens have an ultra-fine grain which can pick up figerprints and dust. They can be cleaned using a lint free cloth. In addition, you can use a hair dryer on COOL air to clean off the dust.

[/toggle_content]

[toggle_content title=”Q : Can I use Mocom concave screen (Solstice) in direct sunlight?”]

A : For obivous reasons, we do not recommend that you use it with applications where sunlight will be at the same angle as the projector light source or in wet or windy conditions. The off-axis ambient light rejection of these screens is astonishingly high, allowing them to be used as billboards under full vapor lighting in trade shows and other public facilities.

[/toggle_content]

[toggle_content title=”Q : What projector do I need?”]

A : It all depends on your needs. Bigger screens or brighter images will require higher lumens. We do not recommend short throw projectors because the curvature of the screen is calculated using a normal projector’s throw distance. For short throw projector’s, the curvature of the screen must to be calculated differently, so please check with us for more information if you need to use a short throw projector.

[/toggle_content]

[toggle_content title=”Q : What is the best viewing position?”]

A: In general, the best viewing position is behind the projector. The optimal viewing position is equal to or farther away from the screen than the center of the sphere represented by the screen’s curvature. For larger Mocom screens, the center of the sphere is approximately 19.5 feet from the face of the screen. However, a large number of our screens in use are actively viewed at shorter distances and still achieve very satisfactory results. Please be aware that as you get close to the screen, limitations in the projector such as pixilation, etc. become visible due to the sharpness of Mocom screens.
[/toggle_content]

[toggle_content title=”Q : How do I mount it?”]

A : Screens below 150″ come with a fiberglass back-bracket that has two vertical rows of threaded studs set approximately 6″ above the centerline of the screen. These can be mounted on hooks, which will allow the screen to be swung into the correct angle for viewing.

※ Please refer to the “Mocom Screen Assembly & Installation guide

[/toggle_content]

[toggle_content title=” Q : How do I adjust the screen angle for optimum light output?”]

A : It’s easy. Start by adjusting the vertical angle of the screen so that the center of the screen is exactly perpendicular to the line drawn from the light source (projector).

Then, adjust the vertical angle for the highest brightness when observed from the main viewing positions.

※ Please refer to the “Mocom concaved Screen Assembly & Installation guide

[/toggle_content]

[/accordion_toggle]
